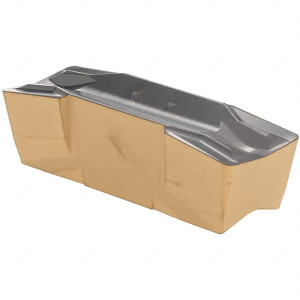

Iscar GIF 10.00E-0.80 Carbide Grooving Insert TiAlN Finish, Neutral, 10mm Cutting Width, 27mm Max Depth, Series Cut Grip 6404253 - 63105803
Brand: Iscar- SKU:
- 63105803
- ID:
- 648963
$87.67
Iscar GIF 10.00E-0.80 Carbide Grooving Insert TiAlN Finish, Neutral, 10mm Cutting Width, 27mm Max Depth, Series Cut Grip
Manufacturer Part #: 6404253
S/N: 63105803
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | GIF |
| Insert Size Code | 1000E080 |
| Cutting Width (Decimal Inch) | 0.3937 |
| Cutting Width (mm) | 10.00 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 1.0630 |
| Maximum Depth of Cut (mm) | 27.00 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC808 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Rake | Positive |
| Insert Holding Method | Clamp |
| Insert Size | 1000E080 |
| Material Grade | Submicron |
| Maximum Depth Of Cut Range (Decimal Inch) | 1.0000+ |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Multi-use Tool | Yes |
| Series | Cut Grip |
| Coating Process | PVD |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 1.1811 |
| Overall Length (mm) | 30.00 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, P, S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | F |
| Overall Width (mm) | 10.00 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.3937 |
| Coating/Finish | AlTiN, TiAlN, TiN |
| Single Or Double End | Double |
