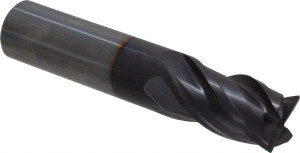

Guhring 1/2", 5/8" LOC, 1/2" Shank Diam, 2-1/2" OAL, 4 Flute, Solid Carbide Square End Mill Single End, FIREX Finish, Spiral Flute, Variable Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 3113 9031130127000 - 63131890
Brand: Guhring- SKU:
- 63131890
- ID:
- 629325
$91.87
Guhring 1/2", 5/8" LOC, 1/2" Shank Diam, 2-1/2" OAL, 4 Flute, Solid Carbide Square End Mill Single End, FIREX Finish, Spiral Flute, Variable Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 3113
Manufacturer Part #: 9031130127000
S/N: 63131890
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 5/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | FIREX |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Overall Length (Decimal Inch) | 2.5000 |
| Chipbreaker | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.6250 |
| Length Type | Stub |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Minimum Helix Angle | 35 |
| Maximum Helix Angle | 38 |
| Mill Diameter Tolerance | h10 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Cast Iron, Steel |
| Primary Workpiece Material Code | K, P |
| UNSPSC Code | 27112803 |
| Secondary Workpiece Material | Hard Material, Stainless Steel |
| Secondary Workpiece Material Code | H, M, S |
| Material Grade | Proprietary |
| Series | 3113 |
