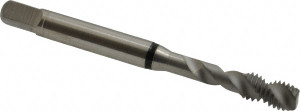

Guhring Spiral Flute Tap: #12-28, UNF, 2 Flute, Modified Bottoming, 2B Class of Fit, Cobalt, Bright/Uncoated 2.382" OAL, Right Hand Flute, Right Hand Thread, H3 & H4, Series 3932 9039320054860 - 63269120
Brand: Guhring- SKU:
- 63269120
- ID:
- 769854
$33.20
Guhring Spiral Flute Tap: #12-28, UNF, 2 Flute, Modified Bottoming, 2B Class of Fit, Cobalt, Bright/Uncoated 2.382" OAL, Right Hand Flute, Right Hand Thread, H3 & H4, Series 3932
Manufacturer Part #: 9039320054860
S/N: 63269120
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | #12-28 |
| Thread Standard | UNF |
| Chamfer | Modified Bottoming |
| Material | Cobalt |
| Thread Limit | H3, H4 |
| Class Of Fit | 2B |
| Coating/Finish | Bright/Uncoated |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Material Application | Aluminum, Aluminum Alloy |
| Number Of Flutes | 2 |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Oversize | No |
| Threads per Inch | 28 |
| Overall Length (Decimal Inch) | 2.3820 |
| Application | Blind Hole Threading |
| Shank Diameter (Decimal Inch) | 0.2200 |
| Neck Length (Decimal Inch) | 1.0240 |
| Square Size (Decimal Inch) | 0.1650 |
| Flute Style | Fast |
| Series | 3932 |
