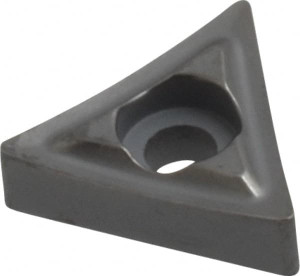

Kennametal T221P K68 Carbide Turning Insert Uncoated, Neutral, 11mm Long, 1/4" Inscribed Circle, 1/64" Corner Radius, 60° Triangle, Series Screw-On 1161207 - 63433411
Brand: Kennametal- SKU:
- 63433411
- ID:
- 672501
$21.07
Kennametal T221P K68 Carbide Turning Insert Uncoated, Neutral, 11mm Long, 1/4" Inscribed Circle, 1/64" Corner Radius, 60° Triangle, Series Screw-On
Manufacturer Part #: 1161207
S/N: 63433411
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| ANSI Insert Code | T221 |
| ISO Insert Code | T110304 |
| Insert Style | T |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 60 |
| Manufacturer Grade | K68 |
| Coating/Finish | Bright/Uncoated |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | Screw-On |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Roughing, Medium Machining |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness, Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness, Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne |
| Side Clearance | Negative |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.0945 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.40 |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Screw |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Rake | Positive |
| Insert Length (mm) | 11.00 |
| Insert Length (Decimal Inch) | 0.4331 |
| Primary Workpiece Material Code | P, M, K, N, S |
| Iso Code | SNMG190612MP |
| Manufacturers Catalog Number | 1161207 |
| Material Grade | C3 |
| Chip Breaker | P |
| Industry Standard Number | DNMG442FF |
| ANSI Size Code | 221 |
| ISO Size Code | 110304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 221 |
