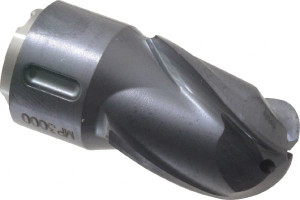

Seco Tools MP16.625B90Z3M05MP3000 Carbide Milling Tip Insert TiAlN Finish, 3 Flutes, 5/8" Diam, 5/16" Depth 02687470 - 63475107
Brand: Seco Tools- SKU:
- 63475107
- ID:
- 664069
$292.92
Seco Tools MP16.625B90Z3M05MP3000 Carbide Milling Tip Insert TiAlN Finish, 3 Flutes, 5/8" Diam, 5/16" Depth
Manufacturer Part #: 02687470
S/N: 63475107
UNSPSC: 23291601
(Minimum Order Quantity=2)
(Please order in multiples of 2)
Specifications:
| Milling Tip Type | Profile |
| Milling Tip Style | MP16 |
| Maximum Depth of Cut (Decimal Inch) | 0.7480 |
| Tool Material | Carbide |
| Manufacturer Grade | MP3000 |
| Insert Hand | Right Hand |
| Chipbreaker | M05 |
| Series | MP16 |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.3120 |
| Cutting Width (Decimal Inch) | 0.6250in |
| Functional Length (Decimal Inch) | 1.2830 |
| Primary Workpiece Material | Steel, Stainless Steel, Hard Material |
| Primary Workpiece Material Code | P, M, H |
| Standards | ANSI |
| Milling Tip Full Description | MP16-00.625-.74-B90Z3-M05 |
| Lead Angle | 90 |
| Manufacturers Catalog Number | 02687470 |
| Chamfer Angle | 0degree |
| Overall Length (Decimal Inch) | 1.2830in |
| Insert Size | 00.625-.74-B90Z3 |
| Helix Angle | 30 |
| Coolant Through | Yes |
| Material Grade | P20, P30, M10, H10, H20, H30 |
| Included Angle Degree | 90 |
| Coating/Finish | TiAlN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7480in |
| UNSPSC Code | 23291601 |
| Number Of Flutes | 3 |
| Extension From Holder (Inch) | 1.2830 |
