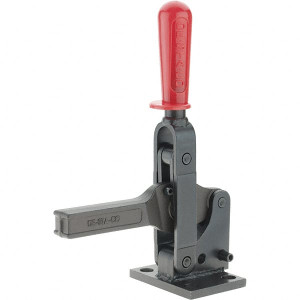

Destaco 2,749 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp 74° Handle Movement, 147° Bar Opening, Solid Bar, Flanged Base, Oxide Finish, Forged Alloy Steel 5915 - 63545370
Brand: Destaco- SKU:
- 63545370
- ID:
- 441423
$192.90
Destaco 2,749 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp 74° Handle Movement, 147° Bar Opening, Solid Bar, Flanged Base, Oxide Finish, Forged Alloy Steel
Manufacturer Part #: 5915
S/N: 63545370
UNSPSC: 31162902
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Handle Orientation | Vertical |
| Bar Style | Solid |
| Base Style | Flanged |
| Bar End Type | Closed |
| Holding Capacity (N) | 12230.00 |
| Holding Capacity (Lb.) | 2749.38 |
| Length Distance Between Mount Holes (mm) | 50.80 |
| Length Distance Between Mount Holes | 2in, 50.8mm |
| Length Distance Between Mount Holes (Inch) | 2.0 |
| Width Distance Between Mount Holes (mm) | 69.85 |
| Width Distance Between Mount Holes | 2.75in, 69.85mm |
| Width Distance Between Mount Holes (Decimal Inch) | 2.7500 |
| Height Under Bar (Decimal Inch) | 2.3700 |
| Height Under Bar (mm) | 60.20 |
| Overall Length (mm) | 190.50 |
| Overall Length (Decimal Inch) | 7.5000 |
| Overall Height (Decimal Inch) | 18.8900 |
| Overall Height (Mm - 5 Decimals) | 479.81 |
| Base Length (mm) | 50.80 |
| Base Width (Inch) | 3.8800 |
| Base Width | 98.55 |
| Handle Style | Straight |
| Material | Forged Alloy Steel |
| Handle Material | Forged Alloy Steel |
| Handle Color | Red |
| Mounting Hole Diameter (mm) | 13.97 |
| Mounting Hole Diameter (Decimal Inch) | 0.5500 |
| Bar Opening (Degrees) | 147 |
| Handle Movement (Degrees) | 74 |
| Bar Width (Inch) | 1 |
| Bar Width (mm) | 25.40 |
| Bar Width (Decimal Inch) | 1.0000 |
| UNSPSC Code | 31162902 |
| Front Of Base To Toggle Tip | 5.00in |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 5.0000 |
| Front of Base To Tip Of Toggle Bar (mm) | 127.00 |
| Number Of Mounting Holes | 4 |
| Finish Coating | Oxide |
