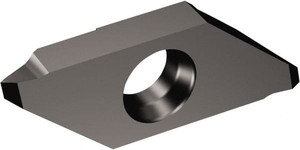

Sandvik Coromant MATR360-A 1105 Carbide Threading Insert TiAlN Finish, External, Neutral, 60° V, 0.35-1mm, Series CoroCut XS 6071746 - 63575062
Brand: Sandvik Coromant- SKU:
- 63575062
- ID:
- 667146
$74.75
Sandvik Coromant MATR360-A 1105 Carbide Threading Insert TiAlN Finish, External, Neutral, 60° V, 0.35-1mm, Series CoroCut XS
Manufacturer Part #: 6071746
S/N: 63575062
UNSPSC: 23291804
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | MATR-A |
| Insert Material | Carbide |
| Manufacturer Grade | 1105 |
| Thread Standard | 60 Deg V |
| Insert Hand | Right Hand |
| External Pitch | 0.35-1.00 mm, 24-72 TPI |
| Included Angle | 60degree |
| Series | CoroCut XS |
| Coating Process | PVD |
| Tip to Top of Insert (Decimal Inch) | 0.1250 |
| Tip to Top of Insert (mm) | 3.17 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Corner Radius (mm) | 0.05mm |
| Iso Code | MATR 3 60-A 1105 |
| Thickness (mm) | 3.17mm |
| Thickness (Inch) | 1/8in |
| Insert Size | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250in |
| Finish Coating | TiAlN |
| Thread Type | External |
| UNSPSC Code | 23291804 |
