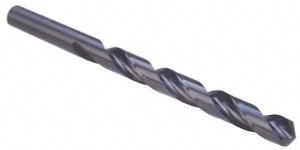

Cleveland Twist Drill 5.4mm 118° High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3.661" OAL, Standard Point C71259 - 63690192
Brand: Cleveland Twist Drill- SKU:
- 63690192
- ID:
- 718061
$6.41
Cleveland Twist Drill 5.4mm 118° High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3.661" OAL, Standard Point
Manufacturer Part #: C71259
S/N: 63690192
UNSPSC: 23241634
UPC: 697334712596
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (mm) | 5.40 |
| Drill Bit Size (Decimal Inch) | 0.2125 |
| Drill Bit Material | High Speed Steel |
| Drill Point Angle (Degrees) | 118 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Oxide |
| Shank Diameter (Decimal Inch) | 0.2125 |
| Overall Length (Decimal Inch) | 3.6610 |
| Spiral Type | Regular |
| Flute Length (Decimal Inch) | 2.2440 |
| Series | 2001G |
| Flute By Diameter Ratio | 4xD |
| Shank Length (mm) | 36.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Drill Bit Diameter Tolerance | -0.0007 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Tool Performance | General Purpose |
| Standards | ASME B94.11M, DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Drill Bit Size Range (mm) | 5.00 - 6.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
