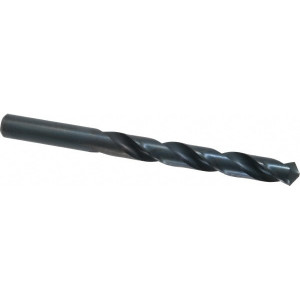

Cleveland Twist Drill 12.5mm 118° High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 5.945" OAL, Standard Point C71316 - 63691893
Brand: Cleveland Twist Drill- SKU:
- 63691893
- ID:
- 718711
$23.95
Cleveland Twist Drill 12.5mm 118° High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 5.945" OAL, Standard Point
Manufacturer Part #: C71316
S/N: 63691893
UNSPSC: 23241634
UPC: 697334713166
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (mm) | 12.50 |
| Drill Bit Size (Decimal Inch) | 0.4921 |
| Drill Bit Material | High Speed Steel |
| Drill Point Angle (Degrees) | 118 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Oxide |
| Shank Diameter (Decimal Inch) | 0.4921 |
| Overall Length (Decimal Inch) | 5.9450 |
| Spiral Type | Regular |
| Flute Length (Decimal Inch) | 3.9760 |
| Series | 2001G |
| Flute By Diameter Ratio | 4xD |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
| Drill Bit Diameter Tolerance | -0.0010 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Tool Performance | General Purpose |
| Standards | ASME B94.11M, DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.4000 - 0.5000 |
| Drill Bit Size Range (mm) | 12.50 - 15.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
