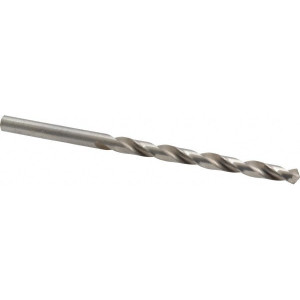

Cleveland Twist Drill #12 118° High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3-1/2" OAL, Standard Point C72112 - 63693121
Brand: Cleveland Twist Drill- SKU:
- 63693121
- ID:
- 717809
$4.86
Cleveland Twist Drill #12 118° High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3-1/2" OAL, Standard Point
Manufacturer Part #: C72112
S/N: 63693121
UNSPSC: 23241634
UPC: 697334721123
(Minimum Order Quantity=12)
(Please order in multiples of 12)
Specifications:
| Drill Bit Size (Wire) | #12 |
| Drill Bit Size (Decimal Inch) | 0.1890 |
| Drill Bit Material | High Speed Steel |
| Drill Point Angle (Degrees) | 118 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Bright/Uncoated |
| Flute Length (Inch) | 2-5/16 |
| Shank Diameter (Decimal Inch) | 0.1890 |
| Overall Length (mm) | 88.90 |
| Overall Length (Inch) | 3-1/2 |
| Overall Length (Decimal Inch) | 3.5000 |
| Spiral Type | Regular |
| Series | 2002G |
| Flute By Diameter Ratio | 4xD |
| Shank Length (mm) | 30.16 |
| Shank Length (Decimal Inch) | 1.1875 |
| Drill Bit Diameter Tolerance | -0.0007 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Tool Performance | General Purpose |
| Standards | ASME B94.11M, DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Specification Designation | ANSI |
| UNSPSC Code | 23241634 |
