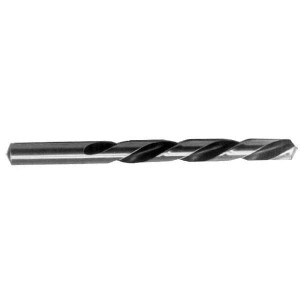

Cleveland Twist Drill 3/32" 118° High Speed Steel Jobber Drill Bright Finish, Left Hand Cut, Spiral Flute, Straight Shank, 2-1/4" OAL, Standard Point C01430 - 63697064
Brand: Cleveland Twist Drill- SKU:
- 63697064
- ID:
- 718141
$7.17
Cleveland Twist Drill 3/32" 118° High Speed Steel Jobber Drill Bright Finish, Left Hand Cut, Spiral Flute, Straight Shank, 2-1/4" OAL, Standard Point
Manufacturer Part #: C01430
S/N: 63697064
UNSPSC: 23241634
UPC: 697334014300
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Drill Bit Size (Inch) | 3/32 |
| Drill Bit Size (Decimal Inch) | 0.0938 |
| Drill Bit Material | High Speed Steel |
| Drill Point Angle (Degrees) | 118 |
| Flute Type | Spiral |
| Cutting Direction | Left Hand |
| Point Type | Standard |
| Primary Workpiece Material | Aluminum |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Bright/Uncoated |
| Flute Length (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 0.0938 |
| Overall Length (mm) | 57.15 |
| Overall Length (Inch) | 2-1/4 |
| Overall Length (Decimal Inch) | 2.2500 |
| Spiral Type | Regular |
| Flute Length (mm) | 31.75 |
| Flute Length (Decimal Inch) | 1.2500 |
| Series | 2006 |
| Shank Length (mm) | 25.40 |
| Shank Length (Decimal Inch) | 1.0000 |
| Drill Bit Diameter Tolerance | -0.0005 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Tool Performance | General Purpose |
| Standards | ASME B94.11M |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Specification Designation | ANSI |
| UNSPSC Code | 23241634 |
