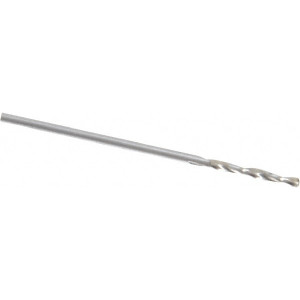

Cleveland Twist Drill #56 118° Spiral Flute High Speed Steel Screw Machine Drill Bit Bright Finish, Right Hand Cut, 1/2" Flute Length, 1-3/8" OAL, Standard Point, Straight Shank C04363 - 63706568
Brand: Cleveland Twist Drill- SKU:
- 63706568
- ID:
- 733832
$4.00
Cleveland Twist Drill #56 118° Spiral Flute High Speed Steel Screw Machine Drill Bit Bright Finish, Right Hand Cut, 1/2" Flute Length, 1-3/8" OAL, Standard Point, Straight Shank
Manufacturer Part #: C04363
S/N: 63706568
UNSPSC: 23241635
UPC: 697334043638
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Drill Bit Size (Wire) | #56 |
| Drill Bit Size (Decimal Inch) | 0.0465 |
| Tool Material | High-Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Drill Point Angle | 118 |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Point Type | Standard |
| Primary Workpiece Material | Alloy, Aluminum |
| Shank Diameter (Decimal Inch) | 0.0465 |
| Overall Length (Inch) | 1-3/8 |
| Series | 2120 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Length Type | Short |
| Shank Length (Inch) | 7/8 |
| Shank Length (Decimal Inch) | 0.8750 |
| Shank Length (mm) | 22.22 |
| Tool Performance | General Purpose |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Standards | ASME B94.11M |
| Flute Length (Decimal Inch) | 0.5000 |
| Flute Length (Inch) | 1/2 |
| Flute Length (mm) | 12.70 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.0000 to 0.1000 |
| Specification Designation | ANSI |
