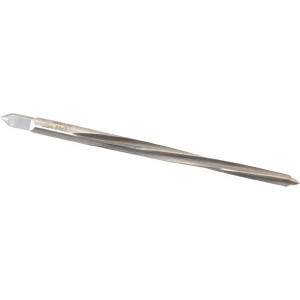

Cleveland Twist Drill #3/0 Pin, 0.1302" Diam, 0.1029" Small End, 9/64" Diam Straight Shank, 1-5/16" Flute, Taper Pin Reamer Spiral Flute, 2-5/16" OAL, Left Hand Spiral, Right Hand Cut, High Speed Steel C24274 - 63747984
Brand: Cleveland Twist Drill- SKU:
- 63747984
- ID:
- 758353
$152.63
Cleveland Twist Drill #3/0 Pin, 0.1302" Diam, 0.1029" Small End, 9/64" Diam Straight Shank, 1-5/16" Flute, Taper Pin Reamer Spiral Flute, 2-5/16" OAL, Left Hand Spiral, Right Hand Cut, High Speed Steel
Manufacturer Part #: C24274
S/N: 63747984
UNSPSC: 23241617
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Taper Pin Size | #3/0 | |
| Small End Diameter (Decimal Inch) | 0.1029 | |
| Flute Type | Spiral | |
| Shank Type | Square | |
| Overall Length (Decimal Inch) | 2.3125 | |
| Overall Length (Inch) | 2-5/16 | |
| Coating/Finish | Bright/Uncoated | |
| Flute Length (Inch) | 1-5/16 | |
| Flute Length (Decimal Inch) | 1.3125 | |
| Large End Diameter (Decimal Inch) | 0.1302 | |
| Shank Diameter (Decimal Inch) | 0.1406 | |
| Shank Diameter (Inch) | 9/64 | |
| Shank Diameter | 9/64 | |
| Spiral Direction | Left Hand | |
| Tool Material | High-Speed Steel | |
| Series | 659 | |
| Tool Application | Hole Enlarging, Hole Finishing, Hole Shaping | |
| Tool Performance | General Purpose | |
| Cutting Direction | Right Hand | |
| Primary Workpiece Material | Cast Iron, Steel, Steel Alloy | |
| Taper Rate | 1 | 48 |
| Number Of Flutes | 4 |
