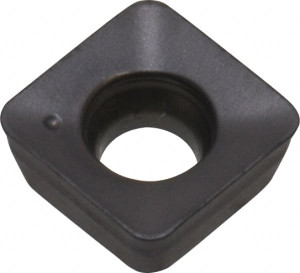

Iscar QOMT 060208TN-HQ IC928 Carbide Milling Insert TiAlN Finish, 0.1008" Thick 5602569 - 63775910
Brand: Iscar- SKU:
- 63775910
- ID:
- 660379
$22.54
Iscar QOMT 060208TN-HQ IC928 Carbide Milling Insert TiAlN Finish, 0.1008" Thick
Manufacturer Part #: 5602569
S/N: 63775910
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | QOMT |
| Insert Size | 06 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | IC928 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1010 |
| Coating/Finish | TiAlN |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Insert Size Code | 060208 |
| Material Grade | C1, C2, C5, C6 |
| Inscribed Circle (Decimal Inch) | 0.2430 |
| Thickness Range (Decimal Inch) | 0.1000 to 0.1250 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.0000 to 0.2500 |
| Length Range (Decimal Inch) | 0.0000 to 0.3200 |
| Insert Hand | Neutral |
| Series | QUAD2000 |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.2110 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Secondary Workpiece Material Code | S |
| Ansi Code | QOMT 060208TN-HQ IC928 |
| Iso Code | QOMT 060208TN-HQ |
| Standards | ANSI, ISO 13399 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | QOMT 060208TN-HQ IC928 |
| Cutter Series Compatibility | ETS, FDN, SDN, E45X, E90X |
| Chip Breaker | HQ |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2425 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.2425 |
