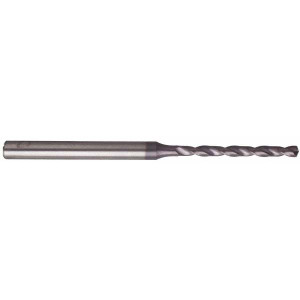

Guhring #54, 135° Point, Solid Carbide Micro Drill Bit 15mm Flute Length, 4mm Shank Diam, Series 6408 9064080014000 - 63896435
Brand: Guhring- SKU:
- 63896435
- ID:
- 731717
$200.06
Guhring #54, 135° Point, Solid Carbide Micro Drill Bit 15mm Flute Length, 4mm Shank Diam, Series 6408
Manufacturer Part #: 9064080014000
S/N: 63896435
UNSPSC: 23241600
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Wire) | #54 |
| Drill Bit Size (Decimal Inch) | 0.0551 |
| Tool Material | Solid Carbide |
| Flute Length (mm) | 15.00 |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Drill Point Angle | 135 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 13.60 |
| Series | 6408 |
| Overall Length (mm) | 52.00mm |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | Faceted |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance | +0.002 to +0.012 mm |
| Primary Workpiece Material | Cast Iron, Stainless Steel, Steel |
| Primary Workpiece Material Code | K, M, P |
| Secondary Workpiece Material | Aluminum, Titanium Alloy |
| Secondary Workpiece Material Code | N, S |
| Shank Diameter (mm) | 4.00mm |
| Shank Length (mm) | 33.00mm |
| Flute By Diameter Ratio | 8xD |
| Material Grade | Submicron |
| Spiral Type | Regular |
| UNSPSC Code | 23241600 |
