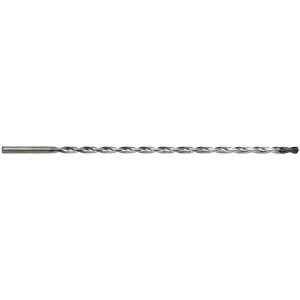

Guhring 7/16" 135° 2-Flute Solid Carbide Extra Length Drill Bit TiAlN (Tip) Finish, 274mm Flute Length, 323mm OAL, 12mm Shank Diam, Through Coolant, Series 6511 9065110111100 - 63896948
Brand: Guhring- SKU:
- 63896948
- ID:
- 709206
$1,074.26
Guhring 7/16" 135° 2-Flute Solid Carbide Extra Length Drill Bit TiAlN (Tip) Finish, 274mm Flute Length, 323mm OAL, 12mm Shank Diam, Through Coolant, Series 6511
Manufacturer Part #: 9065110111100
S/N: 63896948
UNSPSC: 23241637
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 7/16 |
| Overall Length (mm) | 323.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Drill Point Angle | 135 |
| Flute Length (mm) | 274.00 |
| Point Type | Standard |
| Series | 6511 |
| Cutting Direction | Right Hand |
| Tool Application | Deep Hole Drilling |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | +0.000 to -0.018 mm |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Primary Workpiece Material | Cast Iron, Stainless Steel, Steel |
| Primary Workpiece Material Code | K, M, P |
| Secondary Workpiece Material | Aluminum, Titanium Alloy |
| Secondary Workpiece Material Code | H, N, S |
| Standards | California PROP 65 |
| Drill Bit Grade | High Performance |
| Drill Bit Size (Decimal Inch) | 0.4375 |
| Shank Diameter (mm) | 12.00 |
| Shank Length (mm) | 40.00 |
| Flute By Diameter Ratio | 20xD |
| Maximum Drilling Depth (mm) | 311.89 |
| Material Grade | Submicron |
| UNSPSC Code | 23241637 |
