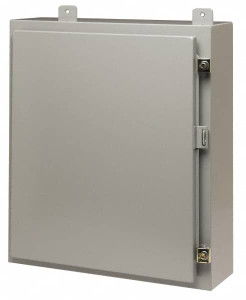

Cooper B-Line NEMA 12, 13 Steel Standard Enclosure with Hinge Flat Cover 16" Wide x 20" High x 8" Deep, Dirt-tight & Dust-tight 78205180110 - 64053010
Brand: Cooper B-Line- SKU:
- 64053010
- ID:
- 592435
$1,477.00
Cooper B-Line NEMA 12, 13 Steel Standard Enclosure with Hinge Flat Cover 16" Wide x 20" High x 8" Deep, Dirt-tight & Dust-tight
Manufacturer Part #: 78205180110
S/N: 64053010
UNSPSC: 39121300
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Enclosure Type | Standard |
| Enclosure Material | Steel |
| Cover Color | Gray |
| Finish | Polyester Powder Coat |
| Cover Type | Hinge Flat |
| Overall Height (Decimal Inch) | 20.0000 |
| Overall Height (Mm - 5 Decimals) | 508.00 |
| Overall Height (Inch) | 20 |
| Overall Depth (Decimal Inch) | 8.0000 |
| Overall Depth (Inch) | 8 |
| Overall Depth (Mm) | 203.00 |
| Overall Width (Decimal Inch - 4 Decimals) | 16.0000 |
| Overall Width (Inch) | 16 |
| Overall Width (mm) | 406.00 |
| Material Gauge | 16 |
| Resistance Features | Dirt-Tight, Dust-Tight |
| Includes | 0.375-16 Collar Studs, Continuous Hinge, External Mounting Feet, Ground Stud, Padlock Hasp, Print Pocket, Seamless Poured-in-place Gasket |
| Standards | ANSI 61, CSA C22.2 No. 94 Certified, UL Listed 508 |
| Nema Rating | 12, 13 |
