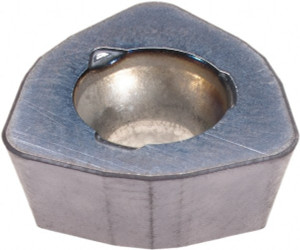

DIJET WDMW080520ZTR JC5040 Carbide Milling Insert 0.216" Thick WDMW080520ZTR J - 64140486
Brand: DIJET- SKU:
- 64140486
- ID:
- 659868
$19.85
DIJET WDMW080520ZTR JC5040 Carbide Milling Insert 0.216" Thick
Manufacturer Part #: WDMW080520ZTR J
S/N: 64140486
UNSPSC: 23291601
(Minimum Order Quantity=10, Multiples of 10, Package Quantity=1)
Specifications:
| Insert Style | WDMW |
| Insert Size | 08 |
| Insert Material | Solid Carbide |
| Insert Shape | Trigon |
| Manufacturer Grade | JC5040 |
| Corner Radius (Decimal Inch) | 0.0790 |
| Number Of Cutting Edges | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2160 |
| Thickness (mm) | 5.50 |
| Coating/Finish | TiAlN |
| Relief Angle | 15 |
| Insert Size Code | 080520ZTR |
| Inscribed Circle (Decimal Inch) | 0.5110 |
| Inscribed Circle (mm) | 12.98 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Insert Hand | Right Hand |
| Series | WDMW |
| Coating Process | PVD |
| Primary Workpiece Material | Universal |
| Ansi Code | WDMW080520ZTR J |
| Iso Code | WDMW080520ZTR J |
| Manufacturers Catalog Number | WDMW080520ZTR J |
| Chip Breaker | TR |
| Material Application | Universal |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Included Angle Degree | 80 |
