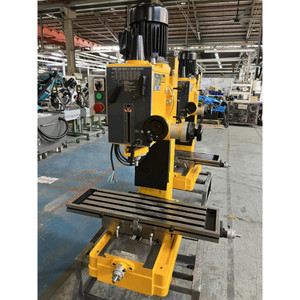

Rong Fu Mill Drill Machine: 20-1/2" x 8-1/4" Travel 220V, 3MT/R8 Spindle, Geared Head, 3 Phase, 1 hp RF-45/3 - 64162779
Brand: Rong Fu- SKU:
- 64162779
- ID:
- 874525
$7,902.32
Rong Fu Mill Drill Machine: 20-1/2" x 8-1/4" Travel 220V, 3MT/R8 Spindle, Geared Head, 3 Phase, 1 hp
Manufacturer Part #: RF-45/3
S/N: 64162779
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drilling Capacity in Steel (Inch) | 1-1/2 |
| End Milling Capacity (Decimal Inch) | 0.7500 |
| Face Milling Capacity (Decimal Inch) | 4.0000 |
| Left-Hand Head Tilt (Degrees) | 90.00 |
| Right-Hand Head Tilt (Degrees) | 30 |
| Cross Travel (Inch) | 8-1/4 |
| Longitudinal Travel (Inch) | 20-1/2 |
| Maximum Spindle to Column Distance (Decimal Inch) | 10.0394 |
| Minimum Spindle Speed | 65RPM |
| Maximum Spindle Speed | 1550RPM |
| Number Of Spindle Speeds | 6 |
| Number of Spindle Speeds | 6 |
| Number of T-Slots | 4 |
| Horsepower | 1 |
| Swing Distance (Inch) | 20 |
| Table Length (Inch) | 32 |
| Table Width (Inch) | 9-3/8 |
| Phase | Three |
| Spindle Speed Control | Geared |
| Spindle Taper Size | 3MT/R8 |
| Spindle Travel Length (Decimal Inch) | 5.1181 |
| Tapping Capacity in Steel (Inch) | 3/4 |
| Voltage | 220V |
| Drilling Capacity in Cast Iron (Inch) | 1-1/2 |
| T Slot Size (mm) | 16 x 26 |
