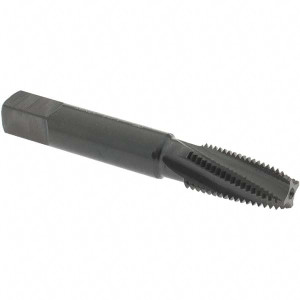

OSG 1/16-27 NPT, 15° Helix, 4 Flutes, Modified Bottoming Chamfer, Oxide Finish, Vanadium High Speed Steel, Spiral Flute Pipe Tap Right Hand Flute, 5/16" Shank Diam, 11/16" Thread Length, 0.3120" Projection, 0.234" Square Size, 1735001 - 64181571
Brand: OSG USA, INC.- SKU:
- 64181571
- ID:
- 767007
$55.03
OSG 1/16-27 NPT, 15° Helix, 4 Flutes, Modified Bottoming Chamfer, Oxide Finish, Vanadium High Speed Steel, Spiral Flute Pipe Tap Right Hand Flute, 5/16" Shank Diam, 11/16" Thread Length, 0.3120" Projection, 0.234" Square Size,
Manufacturer Part #: 1735001
S/N: 64181571
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | 1/16-27 |
| Overall Length (Decimal Inch) | 2.126 |
| Overall Length (Inch) | 2-1/8 |
| Chamfer | Modified Bottoming |
| Thread Standard | NPT |
| Flute Direction | Right Hand |
| Helix Angle | 15 |
| Material | Vanadium High-Speed Steel |
| Thread Length (Inch) | 11/16 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Square Length (Inch) | 0.375 |
| Square Size (Decimal Inch) | 0.2340 |
| Projection (Decimal Inch) | 0.3120 |
| Application | Tapping |
| Material Application | Carbon Steel, Hardened Steel, Stainless Steel |
| Series | 308 |
| Threads per Inch | 27 |
| Coating/Finish | Oxide |
| Coolant Through | No |
| Number Of Flutes | 4 |
