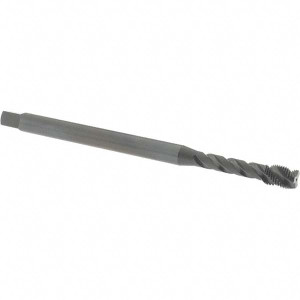

OSG Extension Tap: 3/8-24, 3 Flutes, H3, Oxide Finish, Vanadium High Speed Steel, Spiral Flute Modified Bottoming, 6" OAL, 3B Class of Fit 1768801 - 64183460
Brand: OSG USA, INC.- SKU:
- 64183460
- ID:
- 766390
$85.12
OSG Extension Tap: 3/8-24, 3 Flutes, H3, Oxide Finish, Vanadium High Speed Steel, Spiral Flute Modified Bottoming, 6" OAL, 3B Class of Fit
Manufacturer Part #: 1768801
S/N: 64183460
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Tap Type | Spiral Flute |
| Thread Size (Inch) | 3/8-24 |
| Thread Standard | UNF |
| Thread Limit | H3 |
| Thread Length (Decimal Inch) | 0.5 |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Chamfer | Modified Bottoming |
| Material | Vanadium High-Speed Steel |
| Material Application | Carbon Steel, Hardened Steel, Stainless Steel |
| Shank Diameter (Decimal Inch) | 0.381 |
| Application | Threading |
| Square Size (Decimal Inch) | 0.286 |
| Reduced Shank | Yes |
| Series | 398 |
| Helix Angle | 30 |
| Flute Direction | Right Hand |
| Neck Length (Decimal Inch) | 1.8750 |
| Number Of Flutes | 3 |
| Class Of Fit | 3B |
| Coating/Finish | Steam Oxide |
| Square Length (Decimal Inch) | 0.4375 |
