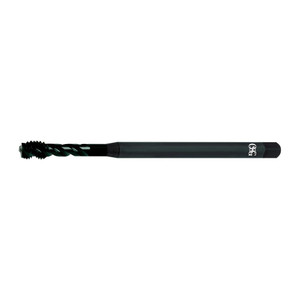

OSG Extension Tap: 5/8-11, 4 Flutes, H3, Oxide Finish, Vanadium High Speed Steel, Spiral Flute Modified Bottoming, 6" OAL, 2.25" Thread Length, 3B Class of Fit 1769301 - 64183510
Brand: OSG USA, INC.- SKU:
- 64183510
- ID:
- 766419
$146.95
OSG Extension Tap: 5/8-11, 4 Flutes, H3, Oxide Finish, Vanadium High Speed Steel, Spiral Flute Modified Bottoming, 6" OAL, 2.25" Thread Length, 3B Class of Fit
Manufacturer Part #: 1769301
S/N: 64183510
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Tap Type | Spiral Flute |
| Thread Size (Inch) | 5/8-11 |
| Thread Standard | UNC |
| Thread Limit | H3 |
| Thread Length (Decimal Inch) | 0.7283464566929134 |
| Thread Length (mm) | 2.25 |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Chamfer | Modified Bottoming |
| Material | Vanadium High-Speed Steel |
| Material Application | Carbon Steel, Hardened Steel, Stainless Steel |
| Shank Diameter (Decimal Inch) | 0.48 |
| Application | Threading |
| Square Size (Decimal Inch) | 0.36 |
| Reduced Shank | Yes |
| Series | 398 |
| Helix Angle | 30 |
| Flute Direction | Right Hand |
| Neck Length (Decimal Inch) | 2.1260 |
| Number Of Flutes | 4 |
| Class Of Fit | 3B |
| Coating/Finish | Steam Oxide |
| Square Length (Decimal Inch) | 0.5625 |
