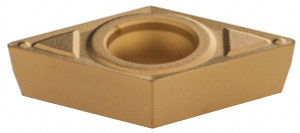

Sumitomo DCMT32.51ENK AC830P Carbide Turning Insert Al2O3 Finish, 3/8" Inscribed Circle, 1/64" Corner Radius, 55° Diamond 19RBW5P - 64346885
Brand: Sumitomo- SKU:
- 64346885
- ID:
- 677399
$21.30
Sumitomo DCMT32.51ENK AC830P Carbide Turning Insert Al2O3 Finish, 3/8" Inscribed Circle, 1/64" Corner Radius, 55° Diamond
Manufacturer Part #: 19RBW5P
S/N: 64346885
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 7 |
| Insert Style | DCMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 55.0 |
| Manufacturer Grade | AC830P |
| Coating/Finish | Al2O3 |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | DC |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Solid Carbide |
| Insert Shape | Diamond |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4567 |
| Secondary Workpiece Material | Universal |
| Secondary Workpiece Material Code | M, P |
| Ansi Code | DCMT32.51ENK |
| Iso Code | DCMT11T304N-SK |
| Standards | ANSI, ISO 13399 |
| Chip Breaker | ENK |
| Rake Angle | 8 |
| Insert Size Code | 32.51 |
