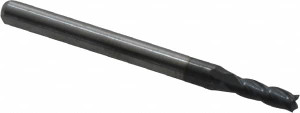

Accupro 0.095", 0.285" LOC, 1/8" Shank Diam, 1-1/2" OAL, 4 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 30° Helix, Centercutting, Series Miniature AP64535024 - 64535024
Brand: Accupro- SKU:
- 64535024
- ID:
- 624515
$43.23
Accupro 0.095", 0.285" LOC, 1/8" Shank Diam, 1-1/2" OAL, 4 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 30° Helix, Centercutting, Series Miniature
Manufacturer Part #: AP64535024
S/N: 64535024
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Decimal Inch) | 0.0950 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.285 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.125 |
| Overall Length (Decimal Inch) | 1.5 |
| Overall Length (Inch) | 1-1/2 |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| Helix Angle | 30 |
| Coating/Finish | AlTiN |
| Variable Helix | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Material Grade | Micrograin |
| Reach Length (Decimal Inch) | 0.625 |
| Length Of Cut Range (Decimal Inch) | 0.2000 - 0.3000 |
| Mill Diameter Tolerance | +0.0000/-0.0010 in |
| Shank Diameter Tolerance | -0.0001/-0.0003 in |
| UNSPSC Code | 27112803 |
