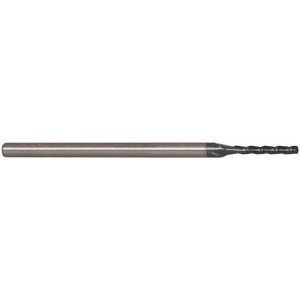

Accupro 0.07", 1/2" LOC, 1/8" Shank Diam, 2-1/2" OAL, 3 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 30° Helix, Centercutting, Series Miniature AP64540826 - 64540826
Brand: Accupro- SKU:
- 64540826
- ID:
- 624154
$33.13
Accupro 0.07", 1/2" LOC, 1/8" Shank Diam, 2-1/2" OAL, 3 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 30° Helix, Centercutting, Series Miniature
Manufacturer Part #: AP64540826
S/N: 64540826
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Decimal Inch) | 0.0700 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.5 |
| Length of Cut (Inch) | 1/2 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.125 |
| Overall Length (Decimal Inch) | 2.5 |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Helix Angle | 30 |
| Coating/Finish | AlTiN |
| Variable Helix | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Material Grade | Micrograin |
| Length Of Cut Range (Decimal Inch) | 0.5000 - 0.6000 |
| Mill Diameter Tolerance | +0.0000/-0.0010 in |
| Shank Diameter Tolerance | -0.0001/-0.0003 in |
