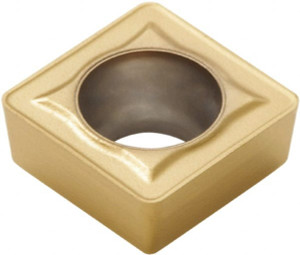

Seco Tools SCGX 120408-P2 T250D Carbide Indexable Drill Insert TiAlN Finish, 12.7mm Inscribed Circle, 4.76mm Thick, 0.8mm Corner Radius, Square

Manufacturer Part #: 02794477

S/N: 64598592

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleSCGX
Insert MaterialSolid Carbide
Manufacturer GradeT250D
Inscribed Circle (Decimal Inch)0.5000
Inscribed Circle (mm)12.70
Corner Radius (Decimal Inch)0.0315
Corner Radius (mm)0.80
SeriesPerfomax
Coating ProcessPVD
ShapeSquare
Relief Angle7
Primary Workpiece MaterialUniversal
Primary Workpiece Material CodeH, M, N, P, S
Insert Size12
Width (mm - 2 Decimals)12.70
Length (Mm)12.70
Width (Decimal Inch - 4 Decimals)0.5000
Length (Decimal Inch - 4 Decimals)0.5000
Included Angle Degree90
Thickness (Decimal Inch - 4 Decimals)0.1874
Coating/FinishCoated
Insert Size Code12
