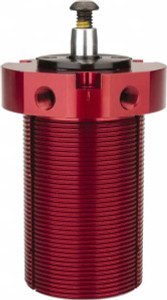

Destaco 90 Lb Clamping Force, Left Hand Swing, 31.75mm Total Stroke, Double-Acting Pneumatic Swing Clamp 1/8 NPT Port, 85.3mm Body Length x 76.2mm Body Width, 2.01 Cu In (Clamp), 2.26 Cu In (Unclamp), 130 Max psi 8216-LA - 64825003

Destaco 90 Lb Clamping Force, Left Hand Swing, 31.75mm Total Stroke, Double-Acting Pneumatic Swing Clamp 1/8 NPT Port, 85.3mm Body Length x 76.2mm Body Width, 2.01 Cu In (Clamp), 2.26 Cu In (Unclamp), 130 Max psi 8216-LA - 64825003

Brand:   Destaco
SKU:
64825003
ID:
438971
UPC:
697437582188
callling
$700.92
Current Stock:
Adding to cart… The item has been added

Destaco

Destaco 90 Lb Clamping Force, Left Hand Swing, 31.75mm Total Stroke, Double-Acting Pneumatic Swing Clamp 1/8 NPT Port, 85.3mm Body Length x 76.2mm Body Width, 2.01 Cu In (Clamp), 2.26 Cu In (Unclamp), 130 Max psi

Manufacturer Part #: 8216-LA

S/N: 64825003

UNSPSC: 23153000

UPC: 697437582188

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Operation TypeAir
Action TypeSingle
Swing DirectionLeft Hand
Clamping Force (Lb.)89.92
Clamping Force (N)400.00
Operating Volume (cc)32.94 (Clamp), 37.03 (Unclamp)
Operating Volume (Cu. In.)2.0100 (Clamp), 2.2600 (Unclamp)
Mount TypeThreaded Body
Total Stroke Distance (mm)31.75
Total Stroke Distance (Decimal Inch)1.2500
Body Length (Decimal Inch)3.3583
Body Length85.30
Body Diameter (Decimal Inch)3.0000
Body Diameter (mm)76.20
Vertical Stroke Distance (Decimal Inch)0.5000
Vertical Stroke Distance (mm)12.70
Vertical Stroke Distance (Inch)1/2
Rod Diameter (mm)12.70
Rod Diameter (Decimal Inch)0.5000
Clamp Arm Compatibility821512 Standard Clamping Arm, 821513 Standard Clamping Arm, 821554 T-Style Clamping Arm, 821555 T-Style Clamping Arm, 821556 Blank Clamping Arm
Body Thread Size2-1/4-12
Body Width/Diameter (mm)76.20
Body Width/Diameter (Decimal Inch)3.0000
Maximum Operating Pressure (psi)130
Minimum Operating Pressure (bar)3.00
Port Size1/8 NPT
IncludesClamping Arm, Spindle
FeaturesThreaded Body Mounted in a Tapped Hole
Bin3.36
G (In)0.2500
H2.6600
K (In)2.3800
C (In)0.8700
Tapped Depth0.3800
Overall Open Length (Decimal Inch)6.3600
UNSPSC Code27112100
E (in)3.0000
F -In--1.1600
