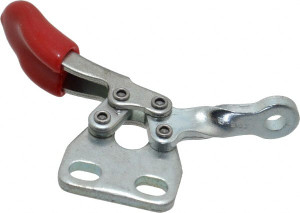

Destaco 60 Lb Holding Capacity, Horizontal Handle, Manual Hold Down Toggle Clamp 82° Handle Movement, 94° Bar Opening, Solid Bar, Straight Base, Electro-Plated Zinc, Carbon Steel 205-SB - 64825375
Brand: Destaco- SKU:
- 64825375
- ID:
- 441424
$29.43
Destaco 60 Lb Holding Capacity, Horizontal Handle, Manual Hold Down Toggle Clamp 82° Handle Movement, 94° Bar Opening, Solid Bar, Straight Base, Electro-Plated Zinc, Carbon Steel
Manufacturer Part #: 205-SB
S/N: 64825375
UNSPSC: 31162902
UPC: 697437520623
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Handle Orientation | Horizontal | |
| Bar Style | Solid | |
| Base Style | Straight | |
| Bar End Type | Fixed Spindle | |
| Holding Capacity (N) | 265.00 | |
| Holding Capacity (Lb.) | 60.00 | |
| Length Distance Between Mount Holes (mm) | 15.75 | |
| Length Distance Between Mount Holes | 0.62in, 15.75mm | |
| Length Distance Between Mount Holes (Inch) | 0.62 | |
| Height Under Bar (Decimal Inch) | 0.5000 | |
| Overall Length (mm) | 72.39 | |
| Overall Length (Decimal Inch) | 2.8500 | |
| Overall Height (Decimal Inch) | 0.8400 | |
| Base Length (mm) | 61.21 | |
| Handle Style | Straight | |
| Material | Carbon Steel | |
| Handle Material | Carbon Steel | |
| Handle Color | Red | |
| Mounting Hole Diameter (mm) | 4.06 | |
| Mounting Hole Diameter (Decimal Inch) | 0.1600 | |
| Bar Opening (Degrees) | 94 | |
| Handle Movement (Degrees) | 82 | |
| Maximum Mechanical Advantage | 04 | 01 |
| Spindle Thread Size | M4x0.7 | |
| Spindle Length (mm) | 22.00 | |
| Bar Width (Inch) | 1/4 | |
| Bar Width (mm) | 6.35 | |
| Bar Width (Decimal Inch) | 0.2500 | |
| UNSPSC Code | 31162902 | |
| Front Of Base To Toggle Tip | 0.73in | |
| Includes | (1) Spindle, (2) Nuts | |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 0.7300 | |
| Front of Base To Tip Of Toggle Bar (mm) | 18.54 | |
| Number Of Mounting Holes | 4 | |
| Finish Coating | Zinc |
