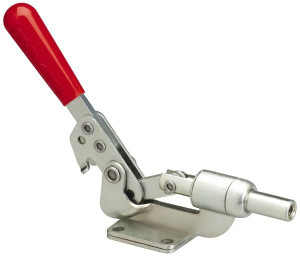

Destaco 600 Lb Load Capacity, Flanged Base, Carbon Steel, Standard Straight Line Action Clamp 4 Mounting Holes, 0.38" Mounting Hole Diam, 0.62" Plunger Diam, Straight Handle 620 - 64825581
Brand: Destaco- SKU:
- 64825581
- ID:
- 441876
$87.53
Destaco 600 Lb Load Capacity, Flanged Base, Carbon Steel, Standard Straight Line Action Clamp 4 Mounting Holes, 0.38" Mounting Hole Diam, 0.62" Plunger Diam, Straight Handle
Manufacturer Part #: 620
S/N: 64825581
UNSPSC: 27112100
UPC: 697437562005
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Load Capacity (Lb. - 3 Decimals) | 600.00 |
| Load Capacity (N) | 2668.93 |
| Load Capacity | 2668.93N, 600lb |
| Plunger Travel (Decimal Inch) | 1.1100 |
| Plunger Travel | 1.11in, 28.19mm |
| Plunger Travel (mm) | 28.19 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | 3/8-16 |
| Plunger Centerline Height (mm) | 43.18 |
| Plunger Centerline Height (Decimal Inch) | 1.7000 |
| Plunger Centerline Height | 1.7in, 43.18mm |
| Plunger Diameter (mm) | 15.75 |
| Plunger Diameter (Decimal Inch) | 0.6200 |
| Base Style | Flanged |
| Handle Style | Straight |
| Clamp Material | Carbon Steel |
| Material | Carbon Steel |
| Overall Length (Decimal Inch) | 11.6300 |
| Overall Length (mm) | 295.40 |
| Overall Height (Mm - 5 Decimals) | 57.15 |
| Overall Height (Decimal Inch) | 2.2500 |
| Base Length (Inch) | 2-1/4 |
| Base Length (mm) | 57.15 |
| Base Length (Decimal Inch) | 2.2500 |
| Base Width (Inch) | 2.2500 |
| Base Width | 57.15 |
| Handle Color | Red |
| Length Distance Between Mount Holes (mm) | 41.30 |
| Length Distance Between Mount Holes (Inch) | 1.6300 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.6300 |
| Width Distance Between Mount Holes (mm) | 41.40 |
| Mounting Hole Diameter (mm) | 9.65 |
| Industry Number | 620 |
| UNSPSC Code | 27112100 |
| Front Of Base To Tip Of Toggle Bar | 3.5700 |
| Number Of Mounting Holes | 4 |
