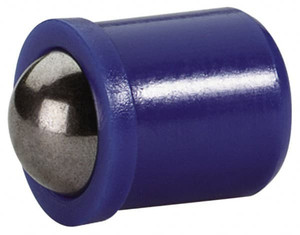

Halder 5mm Body Length x 4mm Body Diam, 3 N Init to 6.5 N Final End Force, Thermoplastic Press Fit Ball Plunger 3mm Ball Diam, 0.8mm Max Ball Reach, 0.1mm Tolerance, 1mm Flange Thickness 22080.0404 - 64829609
Brand: Halder- SKU:
- 64829609
- ID:
- 446261
$1.40
Halder 5mm Body Length x 4mm Body Diam, 3 N Init to 6.5 N Final End Force, Thermoplastic Press Fit Ball Plunger 3mm Ball Diam, 0.8mm Max Ball Reach, 0.1mm Tolerance, 1mm Flange Thickness
Manufacturer Part #: 22080.0404
S/N: 64829609
UNSPSC: 31162900
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Body Diameter (mm) | 4.00 |
| Body Length | 5.00 |
| Body Material | Thermoplastic |
| Ball Material | Stainless Steel |
| Ball Diameter (mm) | 3.00 |
| Ball Diameter (Decimal Inch) | 0.1560 |
| Tolerance (mm) | +0.100 |
| Maximum Ball Reach (mm) | 0.80 |
| Initial End Force (N) | 3.00 |
| Final End Force (N) | 6.50 |
| Flange | Yes |
| Length Under Flange (mm) | 4.00 |
| Flange Thickness (mm) | 1.00 |
| Flange Diameter (Decimal Inch) | 4.6000 |
| Finish | Matte |
| Locking Element | No |
