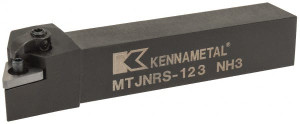

Kennametal RH MTJN Negative Rake Indexable Turning Toolholder 3° Lead Angle, 3/4" x 3/4" Shank, Takes TN..33. Inserts 1096336 - 64922750
Brand: Kennametal- SKU:
- 64922750
- ID:
- 686835
$150.70
Kennametal RH MTJN Negative Rake Indexable Turning Toolholder 3° Lead Angle, 3/4" x 3/4" Shank, Takes TN..33. Inserts
Manufacturer Part #: 1096336
S/N: 64922750
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Toolholder Style | MTJN |
| Hand of Holder | Right Hand |
| Insert Compatibility | TN..33. |
| Insert Holding Method | Clamp, Screw |
| Shank Width (Inch) | 3/4 |
| Shank Height (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 4.5000 |
| Shank Height (mm) | 19.05 |
| Overall Length (mm) | 114.30 |
| Coolant Through | No |
| Rake | Negative |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Decimal Inch) | 0.7500 |
| Series | Kenloc |
| Overall Length (Inch) | 4-1/2 |
| Head Length (Decimal Inch) | 1.1200 |
| Head Length (mm) | 28.45 |
| Back of Bar to Cutting Edge (Inch) | 1 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Back of Bar to Cutting Edge (mm) | 25.40 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | TN.. 332 |
| Manufacturers Catalog Number | MTJNR, LS123 |
