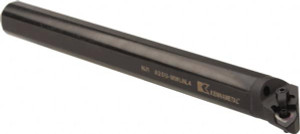

Kennametal 37.34mm Min Bore, Left Hand A-UMWLN Indexable Boring Bar 14" OAL, 1-1/4" Shank Diam, -5° Lead Angle, Uses WN.., A-UMWLN Inserts, Through Coolant 1095800 - 64926009
Brand: Kennametal- SKU:
- 64926009
- ID:
- 684342
$553.10
Kennametal 37.34mm Min Bore, Left Hand A-UMWLN Indexable Boring Bar 14" OAL, 1-1/4" Shank Diam, -5° Lead Angle, Uses WN.., A-UMWLN Inserts, Through Coolant
Manufacturer Part #: 1095800
S/N: 64926009
UNSPSC: 23241601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Minimum Bore Diameter (mm) | 37.34 |
| Minimum Bore Diameter (Decimal Inch) | 1.4700 |
| Toolholder Style | A-UMWLN |
| Tool Material | Steel |
| Insert Compatibility | WN.. |
| Shank Diameter (mm) | 31.75 |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 14.0000 |
| Overall Length (mm) | 355.60 |
| Overall Length (Inch) | 14 |
| Insert Holding Method | Screw, Clamp |
| Rake | Negative |
| Rake Angle | 5.00 |
| Lead Angle | -5 |
| Series | Kenloc |
| Insert Inscribed Circle (Inch) | 1/2 |
| Multi-use Tool | No |
| Back of Bar to Cutting Edge (mm) | 19.43 |
| Center to Cutting Edge (Decimal Inch) | 0.7650 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 3/16 |
| Coolant Through | Yes |
