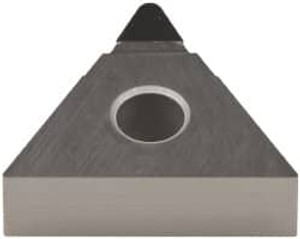

Sumitomo NFTNMX332DA2200 Polycrystalline Diamond (PCD) Turning Insert Uncoated, 3/8" Inscribed Circle, 1/32" Corner Radius, 60° Triangle 16CDBCH - 65270910
Brand: Sumitomo- SKU:
- 65270910
- ID:
- 677784
$94.28
Sumitomo NFTNMX332DA2200 Polycrystalline Diamond (PCD) Turning Insert Uncoated, 3/8" Inscribed Circle, 1/32" Corner Radius, 60° Triangle
Manufacturer Part #: 16CDBCH
S/N: 65270910
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | NF-TNMX |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 60.0 |
| Manufacturer Grade | DA2200 |
| Coating/Finish | Uncoated |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | T |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Polycrystalline Diamond |
| Insert Shape | Triangle |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.1299 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | NFTNMX332 |
| Iso Code | NF-TNMX160408 |
| Standards | ANSI, ISO 13399 |
| Material Grade | C2 |
| Chip Breaker | X |
| Insert Size Code | 332 |
