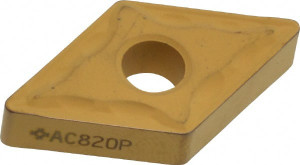

Sumitomo DNMG432EMU AC820P Carbide Turning Insert Al2O3 Finish, 1/2" Inscribed Circle, 1/32" Corner Radius, 55° Diamond 19RJAFP - 65340556
Brand: Sumitomo- SKU:
- 65340556
- ID:
- 677402
$23.17
Sumitomo DNMG432EMU AC820P Carbide Turning Insert Al2O3 Finish, 1/2" Inscribed Circle, 1/32" Corner Radius, 55° Diamond
Manufacturer Part #: 19RJAFP
S/N: 65340556
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| ANSI Insert Code | DNMG432 |
| ISO Insert Code | DNMG150408 |
| Relief Angle | 0 |
| Insert Style | DNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 55 |
| Manufacturer Grade | AC820P |
| Coating/Finish | Al2O3 |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | DN |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Light Machining, Medium Machining |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness, Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6102 |
| Primary Workpiece Material Code | P, K |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Iso Code | DNMG150408N-MU |
| Standards | ANSI, ISO 13399 |
| Material Grade | C5A, C6, C7, C8 |
| Chip Breaker | EMU |
| Rake Angle | 4 |
| ANSI Size Code | 432 |
| ISO Size Code | 150408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
