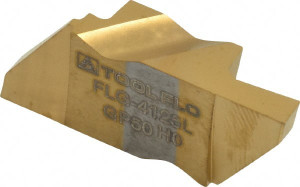

Tool-Flo FLG-4125L GP50 Carbide Grooving Insert TiN Finish, LH, 3.18mm Cutting Width, 6.35mm Max Depth, Series Flo-Lock 564825LN4C - 65355398
Brand: Tool-Flo- SKU:
- 65355398
- ID:
- 651847
$40.24
Tool-Flo FLG-4125L GP50 Carbide Grooving Insert TiN Finish, LH, 3.18mm Cutting Width, 6.35mm Max Depth, Series Flo-Lock
Manufacturer Part #: 564825LN4C
S/N: 65355398
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | FLG |
| Insert Size Code | 4125 |
| Cutting Width (Decimal Inch) | 0.1252 |
| Cutting Width (mm) | 3.18 |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (mm) | 6.35 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | GP50 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0050 to 0.0100 |
| Rake | Positive |
| Insert Size | 4125 |
| Material Grade | C5, C6 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.2000 to 0.3000 |
| Cutting Height (Decimal Inch) | 0.4530 |
| Maximum Depth Of Cut Range (mm) | 5.00 to 10.00 |
| Lead Angle | 3 |
| Multi-use Tool | No |
| Series | Flo-Lock |
| Coating Process | PVD |
| Rake Angle | 55.00 |
| Secondary Workpiece Material | Steel |
| Iso Code | FLG-4125L |
| Maximum Corner Radius (Decimal Inch) | 0.0100 |
| Minimum Corner Radius (Decimal Inch) | 0.0050 |
| Gage Diameter (Decimal Inch) | 0.3750 |
| Gage Diameter (Inch) | 3/8 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.2550 |
| Coating/Finish | TiN |
