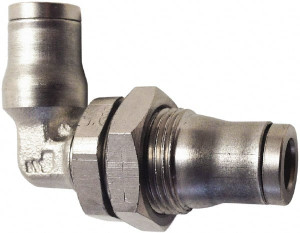

Legris 5/16" Outside Diam, Nickel Plated Brass Push-to-Connect Tube Bulkhead Union Elbow 435 Max psi, Tube to Tube Connection, FKM O-Ring 3639 08 00 - 65402182

Brand: Legris

SKU:: 65402182

ID:: 537846

UPC:

820099283319

callling

$69.00

Current Stock:

Adding to cart… The item has been added

Legris 5/16" Outside Diam, Nickel Plated Brass Push-to-Connect Tube Bulkhead Union Elbow 435 Max psi, Tube to Tube Connection, FKM O-Ring

Manufacturer Part #: 3639 08 00

S/N: 65402182

UNSPSC: 27121700

UPC: 820099283319

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Connection Type	Tube x Tube
Material	Nickel-Plated Brass
Tube Outside Diameter (mm)	8.00
Tube Outside Diameter	5/16
Maximum Working Pressure (Psi - 3 Decimals)	435
Overall Length (mm)	44.00
Standards	2011/65/EC, DI	2002/95/EC (RoHS), DI	94/9/EC (ATEX), DI	97/23/EC (PED), ISO 14743, RG	1907/2006 (REACH), RG	193, UL94 V-0	RG	21CFR (FDA)
Minimum Work Temperature (F)	-4
For Use With	Liquid & Gas
O Ring Material	FKM
Maximum Work Temperature (Deg F - 3 Decimals)	302
Product Service Code	4720
UNSPSC Code	27121700
