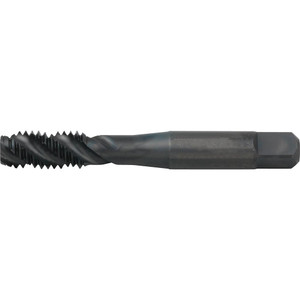

WIDIA Spiral Flute Tap: M8x1.25, Metric, 3 Flute, Modified Bottoming, 6H Class of Fit, High-Speed Steel, Oxide Finish 17.50 mm Thread Length, 68.70 mm OAL, Right Hand Flute, Right Hand Thread, D5, Series VTSFT 5357106 - 65473126
Brand: WIDIA- SKU:
- 65473126
- ID:
- 772488
$54.84
WIDIA Spiral Flute Tap: M8x1.25, Metric, 3 Flute, Modified Bottoming, 6H Class of Fit, High-Speed Steel, Oxide Finish 17.50 mm Thread Length, 68.70 mm OAL, Right Hand Flute, Right Hand Thread, D5, Series VTSFT
Manufacturer Part #: 5357106
S/N: 65473126
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (mm) | M8x1.25 |
| Thread Standard | Metric |
| Chamfer | Modified Bottoming |
| Material | High-Speed Steel |
| Thread Limit | D5 |
| Class Of Fit | 6H |
| Coating/Finish | Oxide |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Material Application | Steel, Stainless Steel, Cast Iron |
| Number Of Flutes | 3 |
| Flute Direction | Right Hand |
| Threads per Inch | 20 |
| Thread Length (mm) | 17.50 |
| Overall Length (mm) | 68.70 |
| Thread Pitch (mm) | 1.25 |
| Material Grade | WP49EG |
| Shank Diameter (mm) | 8.08 |
| Square Length (mm) | 9.50 |
| Square Size (mm) | 5.99 |
| Series | VTSFT |
| UNSPSC Code | 23241600 |
