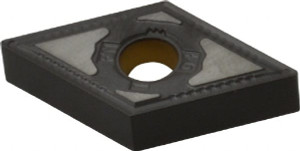

Kennametal DNMG431FN KCP25 Carbide Turning Insert TiCN/Al2O3 Finish, 15.5mm Long, 1/2" Inscribed Circle, 1/64" Corner Radius, 55° Diamond, Series KENLOC 3753705 - 65859803
Brand: Kennametal- SKU:
- 65859803
- ID:
- 672721
$38.37
Kennametal DNMG431FN KCP25 Carbide Turning Insert TiCN/Al2O3 Finish, 15.5mm Long, 1/2" Inscribed Circle, 1/64" Corner Radius, 55° Diamond, Series KENLOC
Manufacturer Part #: 3753705
S/N: 65859803
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| ANSI Insert Code | DNMG431 |
| ISO Insert Code | DNMG150404 |
| Relief Angle | 0 |
| Insert Style | DNMG |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 55 |
| Manufacturer Grade | KCP25 |
| Coating/Finish | TiCN, Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | KENLOC |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness, Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness |
| Number Of Cutting Edges | 4 |
| Side Clearance | Negative |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Clamp, Pin |
| Width (Inch) | 1/2 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | MTCVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (mm) | 15.50 |
| Insert Length (Decimal Inch) | 1.2208 |
| Primary Workpiece Material | Steel, Cast Iron |
| Primary Workpiece Material Code | P, N |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 3753705 |
| Material Grade | C2, C3, C6, C7 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | CVD |
| Chip Breaker | FN |
| Rake Angle | 10 |
| Cutting Edge Style | Honed |
| Industry Standard Number | DNMG431FN |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Boring, Back Turning, Back Boring |
| ANSI Size Code | 431 |
| ISO Size Code | 150404 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 431 |
