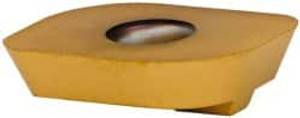

Kennametal LFEW3538ERLN KC725M Carbide Milling Insert TiN/TiCN/TiN Finish, 0.865" Long x 3/16" Thick x 0.6252" Wide 1184136 - 66032145
Brand: Kennametal- SKU:
- 66032145
- ID:
- 661215
$68.98
Kennametal LFEW3538ERLN KC725M Carbide Milling Insert TiN/TiCN/TiN Finish, 0.865" Long x 3/16" Thick x 0.6252" Wide
Manufacturer Part #: 1184136
S/N: 66032145
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | LFEW |
| Insert Size | 35 |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | KC725M |
| Corner Radius (Decimal Inch) | 0.1260 |
| Corner Radius (mm) | 3.20 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Coating/Finish | TiN, TiCN, TiN |
| Relief Angle | 25 |
| Insert Size Code | 3538 |
| Material Grade | C5, C6, C7 |
| Width (Inch) | 5/8 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Right Hand |
| Series | LFEW |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.22 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Iso Code | LFEW220432ERLN |
| Rake Angle | 0 |
| Manufacturers Catalog Number | LFEW220432ERLN |
| Chip Breaker | LN |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.6252 |
| Length (Decimal Inch - 4 Decimals) | 0.8650 |
