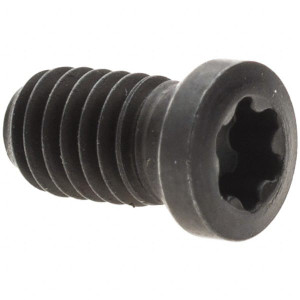

Komet M3.5 TP10 Torx Plus Clamping Screw for Indexables Countersunk Head, Cartridge & Insert Compatible, B00 01, B00 05, B00 06, D02 26, F10 20 Toolholder, L05 00850, L05 01260 Key Driver, Series Kometric N0056211 - 66205931
Brand: Komet- SKU:
- 66205931
- ID:
- 681983
$7.16
Komet M3.5 TP10 Torx Plus Clamping Screw for Indexables Countersunk Head, Cartridge & Insert Compatible, B00 01, B00 05, B00 06, D02 26, F10 20 Toolholder, L05 00850, L05 01260 Key Driver, Series Kometric
Manufacturer Part #: N0056211
S/N: 66205931
UNSPSC: 31161500
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Screw Type | Clamp Screws |
| Indexable Tool Type | Boring Bar, Milling |
| Thread Size (Inch) | M3.5 |
| Thread Size (mm) | M3.5 |
| Toolholder Style Compatibility | B00 01, B00 05, B00 06, D02 26, F10 20 |
| Hardware Compatibility | Cartridge, Insert |
| Drive Type | Torx Plus |
| Head Type | Countersunk |
| Overall Length (mm) | 6.20 |
| Series | Kometric |
| Torx Size | TP10 |
| Cartridge Size Compatibility | FZ25, FZ32, UKS10 |
| Key/Driver Compatibility | L05 00850, L05 01260 |
| Complete Insert Compatibility | TOGX140304EN-14, TOGX140304FN-12, TOGX140304TN, TOHX 140304 EN-04, TOHX 140305 ..R-G06, TOHX 140305 ..R-G12, TOHX 140305 ..R-G20, TOHX 140305..L-G06, TOHX 140305..L-G12, TOHX 140305..L-G20, TOHX 140605EN-G12, TOHX140304EL-G06 |
