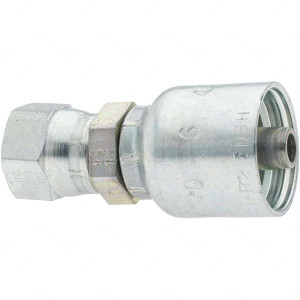

Parker Hannifin Hydraulic Hose Fittings & Couplings, Type: Female JIC 37 Degree Swivel, Hose Diameter: 5/16 (Inch), Hose Size: -5, Thread Type: Female JIC, Material: Stainless Steel 10643-6-5 - 66434267
Brand: Parker Hannifin Corporation- SKU:
- 66434267
- ID:
- 520755
$80.16
Parker Hannifin Hydraulic Hose Fittings & Couplings, Type: Female JIC 37 Degree Swivel, Hose Diameter: 5/16 (Inch), Hose Size: -5, Thread Type: Female JIC, Material: Stainless Steel
Manufacturer Part #: 10643-6-5
S/N: 66434267
UNSPSC: 40141734
(Minimum Order Quantity=1, Package Quantity=4)
Specifications:
| Fitting Type | Female JIC 37 Deg Swivel Fitting |
| Hose Inside Diameter (Decimal Inch) | 0.3125 |
| Hose Size | 5 |
| Material | Stainless Steel |
| Thread Size (Inch) | 9/16-18 |
| Shape | Straight |
| Connection Type | Threaded |
| Overall Length (Decimal Inch) | 2.1000 |
| Overall Length (mm) | 2.10 |
| For Use With | 187, TC, ST, 302, 304, 387, TC, ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487, TC, ST, 722, TC, ST, 787, TC, ST, 797, TC, ST, 881 Hoses |
| Standards | California PROP 65, ISO 12151-5 |
| Series | 43 |
| Shaft Type | Female JIC |
| Hose Diameter (Inch) | 5/16 |
| UNSPSC Code | 40141734 |
