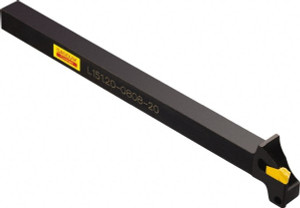

Sandvik Coromant 32mm Max Depth, 3.96mm to 6mm Width, External Right Hand Indexable Grooving/Cutoff Toolholder 6" OAL, 1" x 1" Shank, Uses N151.2-400-5E Inserts, R/L151.20 Toolholder, Series T-Max Q-Cut 5741780 - 66649377
Brand: Sandvik Coromant- SKU:
- 66649377
- ID:
- 686132
$384.20
Sandvik Coromant 32mm Max Depth, 3.96mm to 6mm Width, External Right Hand Indexable Grooving/Cutoff Toolholder 6" OAL, 1" x 1" Shank, Uses N151.2-400-5E Inserts, R/L151.20 Toolholder, Series T-Max Q-Cut
Manufacturer Part #: 5741780
S/N: 66649377
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Maximum Depth of Cut (mm) | 32.00 |
| Maximum Groove Width (mm) | 6.00 |
| Minimum Groove Width (Decimal Inch) | 0.1560 |
| Minimum Groove Width (mm) | 3.96 |
| Toolholder Style | R/L151.20 |
| Insert Holding Method | Clamp |
| Insert Compatibility | N151.2-400-5E |
| Shank Height (mm) | 25.40 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (mm) | 110.74 |
| Shank Length (Decimal Inch) | 4.3600 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Inch) | 1 |
| Series | T-Max Q-Cut |
| Overall Length (mm) | 152.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Head Height (Decimal Inch) | 1.0000 |
| Head Height (mm) | 25.40 |
| Head Length (Decimal Inch) | 1.0000 |
| Head Length (mm) | 25.40 |
| Manufacturers Catalog Number | R151.21-16-40A |
| Insert Seat Size | 40.0 |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
