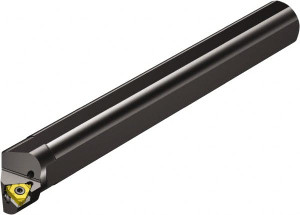

Sandvik Coromant 15" OAL Right Hand Internal/External Indexable Threading Toolholder 1-1/2" x 35mm Shank, Uses 266RL-22 Inserts, 266RKF Toolholder, Through Coolant, Series CoroThread 266 5758105 - 66670662
Brand: Sandvik Coromant- SKU:
- 66670662
- ID:
- 683573
$997.17
Sandvik Coromant 15" OAL Right Hand Internal/External Indexable Threading Toolholder 1-1/2" x 35mm Shank, Uses 266RL-22 Inserts, 266RKF Toolholder, Through Coolant, Series CoroThread 266
Manufacturer Part #: 5758105
S/N: 66670662
UNSPSC: 23291800
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Type | Internal, External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 1.5000 |
| Shank Width/Diameter (Inch) | 1-1/2 |
| Toolholder Style | 266RKF |
| Insert Compatibility | 266RL to 22 |
| Insert Holding Method | Screw |
| Shank Height (mm) | 35.00 |
| Shank Height (Decimal Inch) | 1.3780 |
| Shank Length (Inch) | 15 |
| Shank Length (Decimal Inch) | 15.0000 |
| Overall Length (Inch) | 15 |
| Overall Length (Decimal Inch) | 15.0000 |
| Minimum Bore Diameter (Decimal Inch) | 1.9700 |
| Head Length (Inch) | 4-1/2 |
| Head Length (Decimal Inch) | 4.5000 |
| Maximum Depth of Cut (Decimal Inch) | 4.5000 |
| Back of Bar to Cutting Edge (Inch) | 15 |
| Back of Bar to Cutting Edge (Decimal Inch) | 15.0000 |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Neck Diameter (Decimal Inch) | 1.5000 |
| Toolholder Material | Steel |
| UNSPSC Code | 23291800 |
| Coolant Through | Yes |
| Series | CoroThread 266 |
