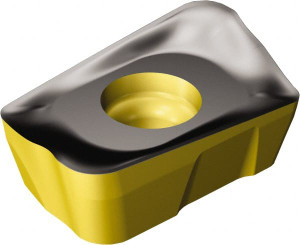

Sandvik Coromant R390-18 06 08M-PM 4330 Carbide Milling Insert TiCN/Al2O3/TiN Finish, 6.33mm Thick x 11mm Wide 7564398 - 66856980
Brand: Sandvik Coromant- SKU:
- 66856980
- ID:
- 662362
$42.18
Sandvik Coromant R390-18 06 08M-PM 4330 Carbide Milling Insert TiCN/Al2O3/TiN Finish, 6.33mm Thick x 11mm Wide
Manufacturer Part #: 7564398
S/N: 66856980
UNSPSC: 23291601
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | R390 |
| Insert Size | 18 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | 4330 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2492 |
| Thickness (mm) | 6.33 |
| Coating/Finish | TiCN, Al2O3, TiN |
| Maximum Depth of Cut (Decimal Inch) | 0.6299 |
| Insert Size Code | 180608 |
| Material Grade | P30, M30, K30 |
| Inscribed Circle (Decimal Inch) | 0.4331 |
| Thickness Range (Decimal Inch) | 0.2350 to 0.2500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Series | R390 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1634 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Cast Iron |
| Primary Workpiece Material Code | P, K |
| Ansi Code | R390-18 06 08M-PM 4330 |
| Iso Code | R390-18 06 08M-PM 4330 |
| Standards | ANSI, ISO |
| Rake Angle | 5 |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | R390-18 06 08M-PM 4330 |
| Cutter Series Compatibility | M-40, R390 |
| Chip Breaker | PM |
| Material Application | Steel, Cast Iron |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.4331 |
| Width (mm - 2 Decimals) | 11.00 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6063 |
