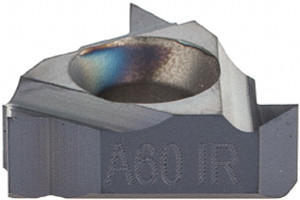

Iscar 11IRA60 IC908 Carbide Laydown Threading Insert TiAlN Finish, RH Internal Partial Profile 60° Thread, 48-16 TPI, 1/4" Inscribed Circle, 0.126" Thick 5901906 - 67138511

Iscar 11IRA60 IC908 Carbide Laydown Threading Insert TiAlN Finish, RH Internal Partial Profile 60° Thread, 48-16 TPI, 1/4" Inscribed Circle, 0.126" Thick 5901906 - 67138511

Brand:   Iscar
SKU:
67138511
ID:
665024
callling
$31.45
Current Stock:
Adding to cart… The item has been added

Iscar

Iscar 11IRA60 IC908 Carbide Laydown Threading Insert TiAlN Finish, RH Internal Partial Profile 60° Thread, 48-16 TPI, 1/4" Inscribed Circle, 0.126" Thick

Manufacturer Part #: 5901906

S/N: 67138511

UNSPSC: 23291804

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert Style11IR
Insert Size Code11
Insert MaterialSolid Carbide
Manufacturer GradeIC908
Threads Per Inch48-16
Thread TypeInternal
Pitch (mm)0.50-1.50
Thread StandardPartial Profile 60 Degree
Insert HandRight Hand
SeriesISCARTHREAD
Coating ProcessPVD
Inscribed Circle (mm)6.35
Inscribed Circle (Inch)1/4
Corner Radius (mm)0.05
Primary Workpiece MaterialUniversal
Primary Workpiece Material CodeH, K, M, N, P, S
Iso CodeISO 13399
StandardsISO 13399
Thickness (Decimal Inch - 4 Decimals)0.1260
Coating/FinishTiAlN
UNSPSC Code23291804
