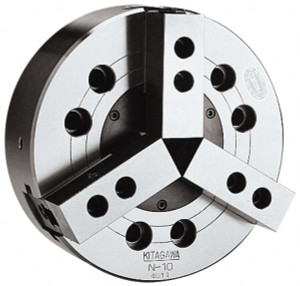

Kitagawa 3 Jaws, 8" Chuck Diam, Plain Back Mount, Drawbar, Air, Hydraulic Power Lathe Chuck 16,826 Lb Force per Jaw, 1.5mm x 60 Serrated Jaw Interface, 23mm to 210mm Jaw Capacity, 4,760 RPM, Steel Body N08 - 67296293
Brand: Kitagawa- SKU:
- 67296293
- ID:
- 451121
$2,463.22
Kitagawa 3 Jaws, 8" Chuck Diam, Plain Back Mount, Drawbar, Air, Hydraulic Power Lathe Chuck 16,826 Lb Force per Jaw, 1.5mm x 60 Serrated Jaw Interface, 23mm to 210mm Jaw Capacity, 4,760 RPM, Steel Body
Manufacturer Part #: N08
S/N: 67296293
UNSPSC: 31380000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Chuck Diameter (Inch) | 8 |
| Chuck Diameter (Decimal Inch) | 8.0000 |
| Chuck Diameter (mm) | 203.20 |
| Mount Type | Plain Back |
| Chuck Actuation Style | Drawbar |
| Operation Type | Air, Hydraulic |
| Jaw Interface Type | Serrated |
| Minimum Jaw Capacity (mm) | 23.00 |
| Maximum Jaw Capacity (mm) | 210.00 |
| Jaw Stroke Diameter (mm) | 8.80 |
| Piston Stroke Length (Decimal Inch) | 0.8270 |
| Maximum Drawbar Pulling Force (kN) | 25.00 |
| Maximum Static Gripping Force (kN) | 75.00 |
| Moment of Inertia (kgf/sqm) | 0.1380 |
| Maximum RPM | 4760 |
| Material | Steel |
| Power Cylinder Compatibility | AY2225R, Y1225R |
| Includes | Chuck Assembled with Adapter, Chuck Mounting Bolts, Draw Nut Wrench, Jaw Mounting Bolts with Wrench, Soft Top Jaws, T-Nuts |
| Force Per Jaw (Lb.) | 16826 |
| Number Of Jaws | 3 |
