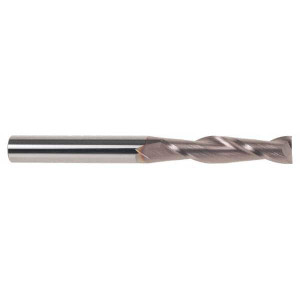

KYOCERA SGS 3/4", 2-1/4" LOC, 3/4" Shank Diam, 5" OAL, 2 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 30° Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 3L 31818 - 67622217
Brand: KYOCERA SGS- SKU:
- 67622217
- ID:
- 637193
$285.46
KYOCERA SGS 3/4", 2-1/4" LOC, 3/4" Shank Diam, 5" OAL, 2 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 30° Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 3L
Manufacturer Part #: 31818
S/N: 67622217
UNSPSC: 27112803
UPC: 691781318189
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Decimal Inch) | 0.7500 |
| Mill Diameter (Inch) | 3/4 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 2.2500 |
| Length of Cut (Inch) | 2-1/4 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (Inch) | 5 |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Helix Angle | 30 |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Material Grade | Micrograin |
| Length Type | Long |
| Length Of Cut Range (Decimal Inch) | 2.0000+ |
| Mill Diameter Tolerance | +0.000/-0.002 in |
| Shank Diameter Tolerance | +0.00000/-0.00051 in |
| Series | 3L |
