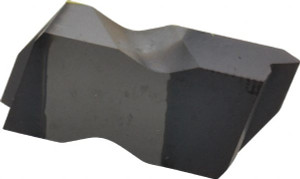

Kennametal NTC3R12E KC5025 Carbide Threading Insert TiAlN Finish, External, UN, 12 TPI, Series Top Notch 1765734 - 67688960

Kennametal NTC3R12E KC5025 Carbide Threading Insert TiAlN Finish, External, UN, 12 TPI, Series Top Notch 1765734 - 67688960

Brand:   Kennametal
SKU:
67688960
ID:
667075
callling
$41.24
Current Stock:
Adding to cart… The item has been added

Kennametal

Kennametal NTC3R12E KC5025 Carbide Threading Insert TiAlN Finish, External, UN, 12 TPI, Series Top Notch

Manufacturer Part #: 1765734

S/N: 67688960

UNSPSC: 23291804

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleNTC
Insert MaterialCarbide
Manufacturer GradeKC5025
Material GradeC2, C6
Thread StandardUN
Insert HandRight Hand
External Pitch12 TPI
Included Angle60degree
SeriesTop Notch
Coating ProcessPVD
Tip to Top of Insert (Decimal Inch)0.1480
Tip to Top of Insert (mm)3.76
Corner Radius (Decimal Inch)0.0100
Corner Radius (mm)0.25mm
Thickness (mm)4.95mm
Insert Size3
Thickness (Decimal Inch - 4 Decimals)0.1949in
Finish CoatingTiAlN
Thread TypeExternal
UNSPSC Code23291804
