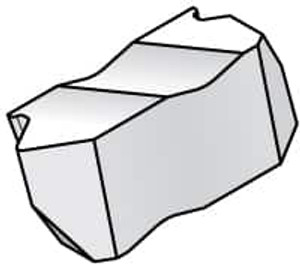

Kennametal NTC3R8E KC5025 Carbide Threading Insert TiAlN Finish, External, UN, 8 TPI, Series Top Notch 1765732 - 67689182
Brand: Kennametal- SKU:
- 67689182
- ID:
- 666973
$40.43
Kennametal NTC3R8E KC5025 Carbide Threading Insert TiAlN Finish, External, UN, 8 TPI, Series Top Notch
Manufacturer Part #: 1765732
S/N: 67689182
UNSPSC: 23291804
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | NTC |
| Insert Material | Carbide |
| Manufacturer Grade | KC5025 |
| Material Grade | C2, C6 |
| Thread Standard | UN |
| Insert Hand | Right Hand |
| External Pitch | 8 TPI |
| Included Angle | 60degree |
| Series | Top Notch |
| Coating Process | PVD |
| Tip to Top of Insert (Decimal Inch) | 0.1071 |
| Tip to Top of Insert (mm) | 2.72 |
| Corner Radius (Decimal Inch) | 0.0161 |
| Corner Radius (mm) | 0.41mm |
| Thickness (mm) | 4.95mm |
| Insert Size | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1949in |
| Finish Coating | TiAlN |
| Thread Type | External |
| UNSPSC Code | 23291804 |
