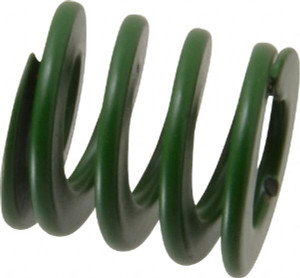

Associated Spring Raymond 25mm Hole Diam, 12.5mm Rod Diam, 1" Free Length, Green Die Spring 1020 N Max Deflection, 10.2mm Max Deflection, Light Duty, Chromium Alloy Steel 203-504 - 67898700
Brand: Associated Spring Raymond- SKU:
- 67898700
- ID:
- 443827
$5.70
Associated Spring Raymond 25mm Hole Diam, 12.5mm Rod Diam, 1" Free Length, Green Die Spring 1020 N Max Deflection, 10.2mm Max Deflection, Light Duty, Chromium Alloy Steel
Manufacturer Part #: 203-504
S/N: 67898700
UNSPSC: 23153000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Hole Diameter (Mm) ( - 0 Decimals) | 25.00 | ||
| Free Length (mm) | 25.00 | ||
| Free Length (Inch) | 1 | ||
| Color | Green | ||
| Wire Shape | Trapezoidal | ||
| Material | Chromium Alloy Steel | ||
| Rod Diameter (mm) | 12.50 | ||
| Travel To Solid Load (mm) | 10.20 | ||
| Maximum Deflection Load (N) | 1020.00 | ||
| Maximum Deflection (mm) | 10.20 | ||
| Spring Rate | 571.02 | ||
| Standards | ANAB Accredited, ISO 9001 | 2008 Certified, ISO/TS 16949 | 2009 Certi ed, TUV Rheinland Registered |
| ISO Number | 10243 |
